Microscope

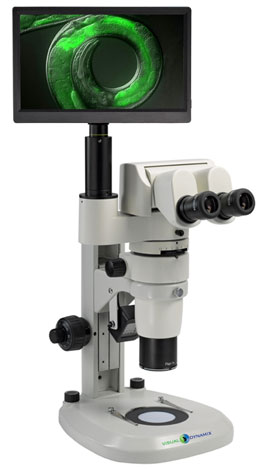

Stereo Microscopes

Z10\Z8\Z6

Features

  • HIGH RESOLUTION PARALLEL OPTICAL DESIGN WITH INCREASED DEPTH OF FOCUS AND DISTORTION FREE RESOLUTION
  • CONTINIOUS VARIABLE ZOOM WITH CLICK STOPS (REMOVEABLE DETENTS) TO REPEAT MAGNIFICATIONS
    • Z10 0.8x- 8.0x ZOOM
    • Z8 0.8Xx - 6.3x ZOOM
    • Z6 0.8x - 5.0x ZOOM
  • IMAGE IS PARFOCAL AND PARCENTRIC THROUGHOUT THE ZOOM RANGE
  • DISTORTION FREE AND LOW DISPERSION GLASS OBJECTIVES (0.5X, 1.0X, 1.6X AND 2X). OPTIONAL DUAL OBJECTIVE NOSEPIECE.
  • OPTIONAL DUAL OBJECTIVE NOSEPIECE
  • ERGONOMIC TILTING EYETUBE
  • 24mm FIELD OF VIEW EYEPIECES
  • INTERMEDIATE PHOTO MODULE TO ALLOW FOR TRUE STEREO PAIRS TO THE CAMERA
  • SELECTABLE BASES AND BOOM STANDS FOR ADVANCED IMAGING AND LIGHTING TECHNIQUES
  • MODULAR DESIGN FOR EASY CUSTOMIZATION AND UPGRADING
  • OPTIONAL MANUAL OR MOTORIZED FLUORESCENCE MODULE
  • OPTIONAL DUAL VIEWING, DRAWING TUBE, POLARIZATION, IRIS AND CO-AXIAL ILLUMINATION MODULES

Specification Sheet & Brochure Sheet

Specification Sheet (PDF) Brochure Sheet (PDF)
